Revision history and obsolete revisions

Goal: release revision B of the bracket, retire revision A, and send revision B to a supplier.

You need: a part number with at least one released revision, see Release a design.

This tutorial follows Onshape’s Viewing revision history and obsoleting parts help page.

Release the next revision

Make the change, for example a thinner base plate, and create a version, here V3 – Production release.
Release V3 as in Release a design. The bracket keeps part number BRK-100; Strata proposes revision B.
If approval is required, approve it in Releases, with a comment such as Checked against drawing D-100.

Open the revision history

Right-click the version node that carries the BRK-100 chip and choose Revision history of BRK-100…. Or open Releases (Ctrl+Shift+R) and choose BRK-100 (revision history) under Show.

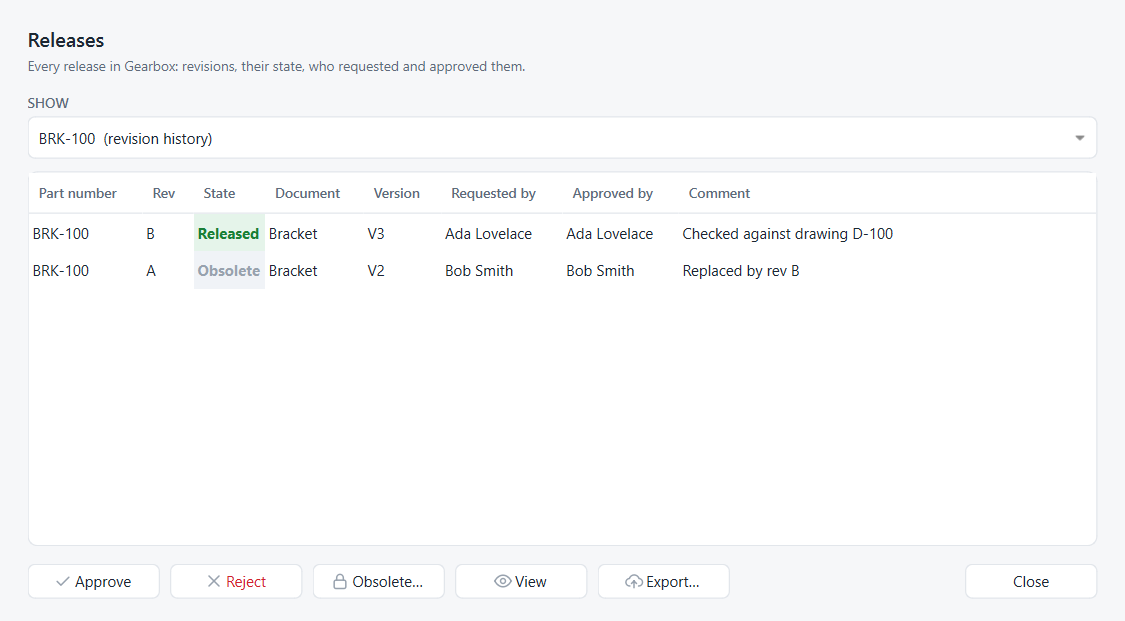

The revision history of part number BRK-100

Revisions are listed newest first, with their state, the version they were released from, who requested and approved them, and the comment.

Mark the old revision obsolete

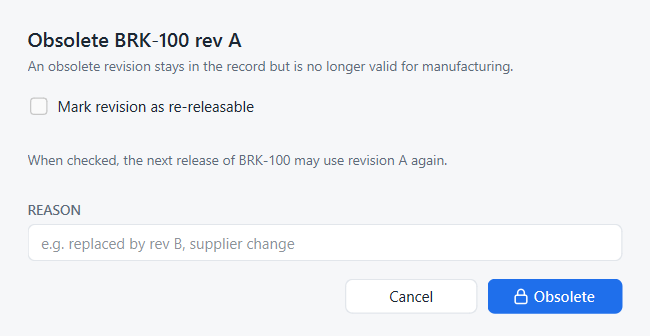

Select revision A and click Obsolete….
Enter a reason, for example Replaced by rev B.
Leave Mark revision as re-releasable unticked: revision A stays used. Tick it only if A never reached production and its letter may be given to a later release.
Click Obsolete.

Revision A now reads Obsolete with the reason. It stays in the record, and View still opens it, but it is no longer valid for manufacturing.

Export a released revision

Select revision B and click Export….
Choose a folder.

Strata writes BRK-100_revB.FCStd, the document exactly as released, and BRK-100_revB.step with its visible solids, ready for a supplier. Your working documents are not touched.

Same thing in Python

revision_history.py: reject and resubmit, revision history, obsolete, numeric revisions, export

# SPDX-License-Identifier: LGPL-2.1-or-later
"""Minimal working example: reject and resubmit, revision history, obsolete, numeric revisions, export.

Run with FreeCAD's console (Strata installed):
    freecadcmd revision_history.py [empty-folder]
"""
import os
import sys
import tempfile

import FreeCAD as App

from strata import fc
from strata.project import Project

folder = next((a for a in sys.argv[1:] if not a.endswith(".py")), None) or tempfile.mkdtemp()
path = os.path.join(folder, "Project", "Bracket.FCStd")
os.makedirs(os.path.dirname(path))

doc = App.newDocument("Bracket")
plate = doc.addObject("Part::Box", "Plate")
plate.Length, plate.Width, plate.Height = 60, 40, 12
doc.recompute()
doc.saveAs(path)

project = Project.create(os.path.dirname(path), "Ada Lovelace", "ada@example.com")


def change(height, version):
    plate.Height = height
    doc.recompute()
    doc.save()
    project.record()
    return project.create_version(version)


# Submitted for approval, rejected with a reason: the revision letter stays free
v1 = project.create_version("V1", "First article")
rev = project.release(v1, "Bracket.FCStd", "BRK-100", approval=True)
project.set_release_state(rev, "Rejected", "Hole pattern does not match drawing")
print("Next revision after a rejection:", project.next_revision("BRK-100"))

# Fixed and resubmitted under the same revision, then approved
rev = project.release(change(10, "V1.1"), "Bracket.FCStd", "BRK-100", approval=True)
project.set_release_state(rev, "Released", "Checked against drawing D-100")

# Revision B replaces A; A becomes obsolete
rev_b = project.release(change(8, "V2"), "Bracket.FCStd", "BRK-100")
project.set_release_state(rev, "Obsolete", "Replaced by rev B")

print("Revision history of BRK-100:")
for r in project.revision_history("BRK-100"):
    print("  rev %s  attempt %d  %-9s from %-4s %s" % (r.revision, r.attempt, r.state, r.version, r.comment))

# Numbered revisions for new part numbers
project.save_settings({"revision_scheme": "numeric"})
print("First numeric revision of SFT-200:", project.next_revision("SFT-200"))

# Export revision B for a supplier: the document as released plus a STEP file
out = fc.export_revision(project, rev_b.sha, rev_b.document, os.path.join(folder, "Released"), "BRK-100_revB")
print("Exported:", ", ".join(os.path.basename(f) for f in out))
App.closeDocument(doc.Name)
project.repo.close()

Output of freecadcmd revision_history.py

Next revision after a rejection: A
Revision history of BRK-100:
  rev B  attempt 1  Released  from V2
  rev A  attempt 2  Obsolete  from V1.1 Replaced by rev B
  rev A  attempt 1  Rejected  from V1   Hole pattern does not match drawing
First numeric revision of SFT-200: 1
Exported: BRK-100_revB.FCStd, BRK-100_revB.step
