Tutorial AG: Impeller Lower Casing

Source	Ming C. Leu, Wenjin Tao, Amir Ghazanfari and Krishna Kolan, NX 12 for Engineering Design (Missouri University of Science and Technology), section 3.5.2. The book’s chapter 4.4 then revolves this sketch into the casing: tutorial AO.
You learn	Profile with tangent arcs, a fixed point to dimension from, radius dimensions, Move Curve with Copy Original, joining curve ends with lines
Sizes	the book’s, in inches, typed in millimetres. Line 1 is 15 below the origin and 7.3 long. Curve 1 has a radius of 33 and Curve 2 of 8. Line 2 is 8.1 below the origin and 1.0 long. The copies are 0.5 up (the wall), 1.5 down (the edge), and the flange is 0.5 wide.

Step by step

1. A new part and a sketch

Ctrl+N. The book makes an inch part. NX-Style parts are metric, so the sizes are typed in millimetres (15 in = 381 mm). Click Sketch, pick the XC-YC plane and press MB2.

2. The inner curve

Press Z for Profile. Draw Line 1 below the origin, from left to right. Press M three times for a tangent arc and click Curve 1’s end. Press M three times again for the second tangent arc, Curve 2, which bends the other way. After an arc, FreeCAD starts with a tangent line, so it takes three presses again. Press M twice for a plain line (NX’s Line; FreeCAD would hold it tangent to the arc), click Line 2’s end and press MB2. Line 1 and Line 2 get Horizontal as they are drawn. Then click Tangent where it is missing, between Curve 2 and Line 2; the other joints are tangent already.

3. A point at the origin, and the dimensions

Click Point and click the origin. The point snaps to it, which fixes it there. In NX you type the point’s coordinates and click Fixed. FreeCAD’s Fixed keeps a point where it already is.

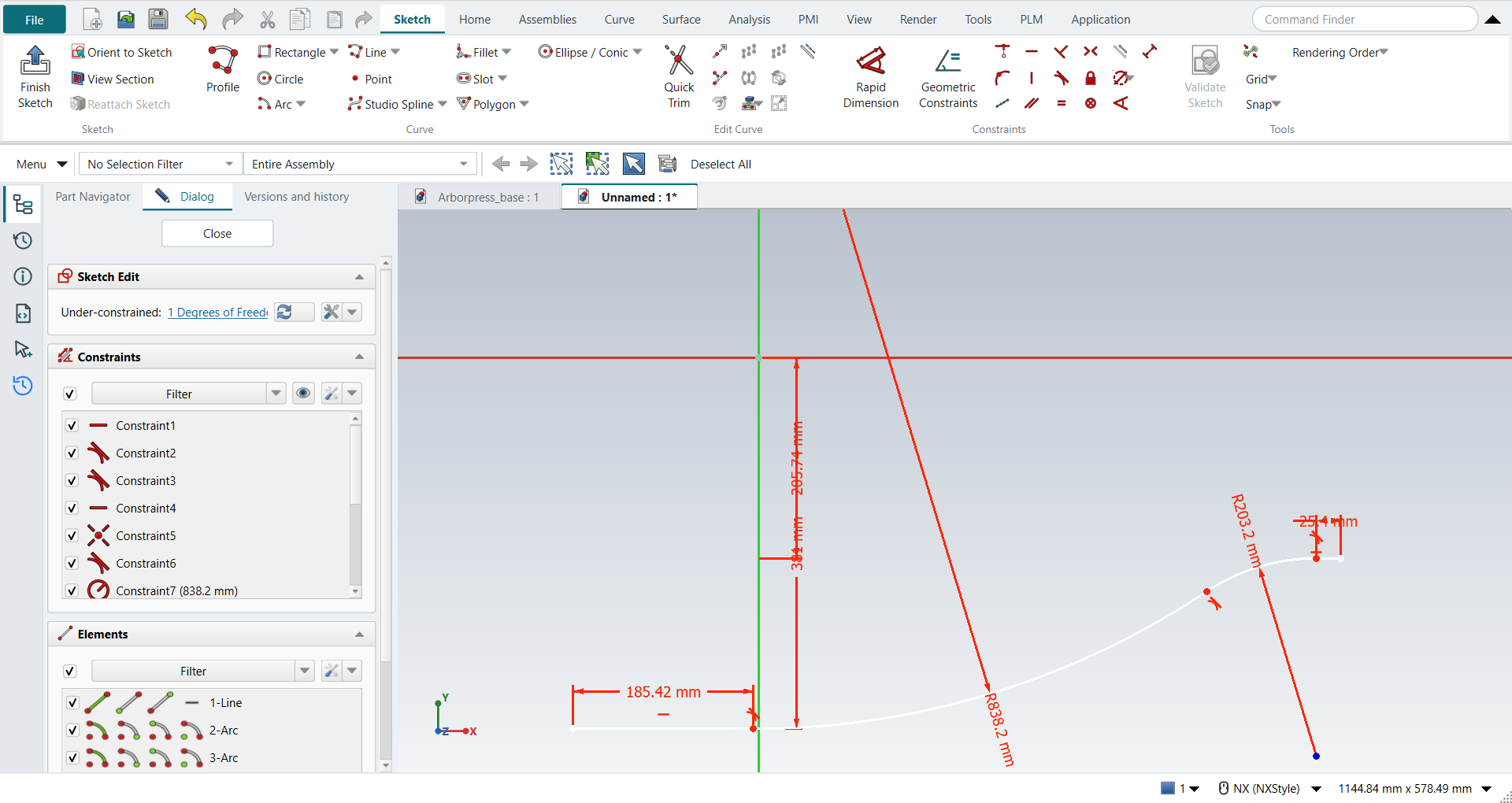

Dimension from the point: Line 1 15 below it and Line 2 8.1 below it (Distance), Curve 1 radius 33 and Curve 2 radius 8 (Radius / Diameter), Line 1 7.3 long and Line 2 1.0 long. One degree of freedom is left: nothing places the curve along X. The book leaves it too, because the casing is later revolved about the X axis.

Select the dimensions, then MB3 > Hide (or Ctrl+B).

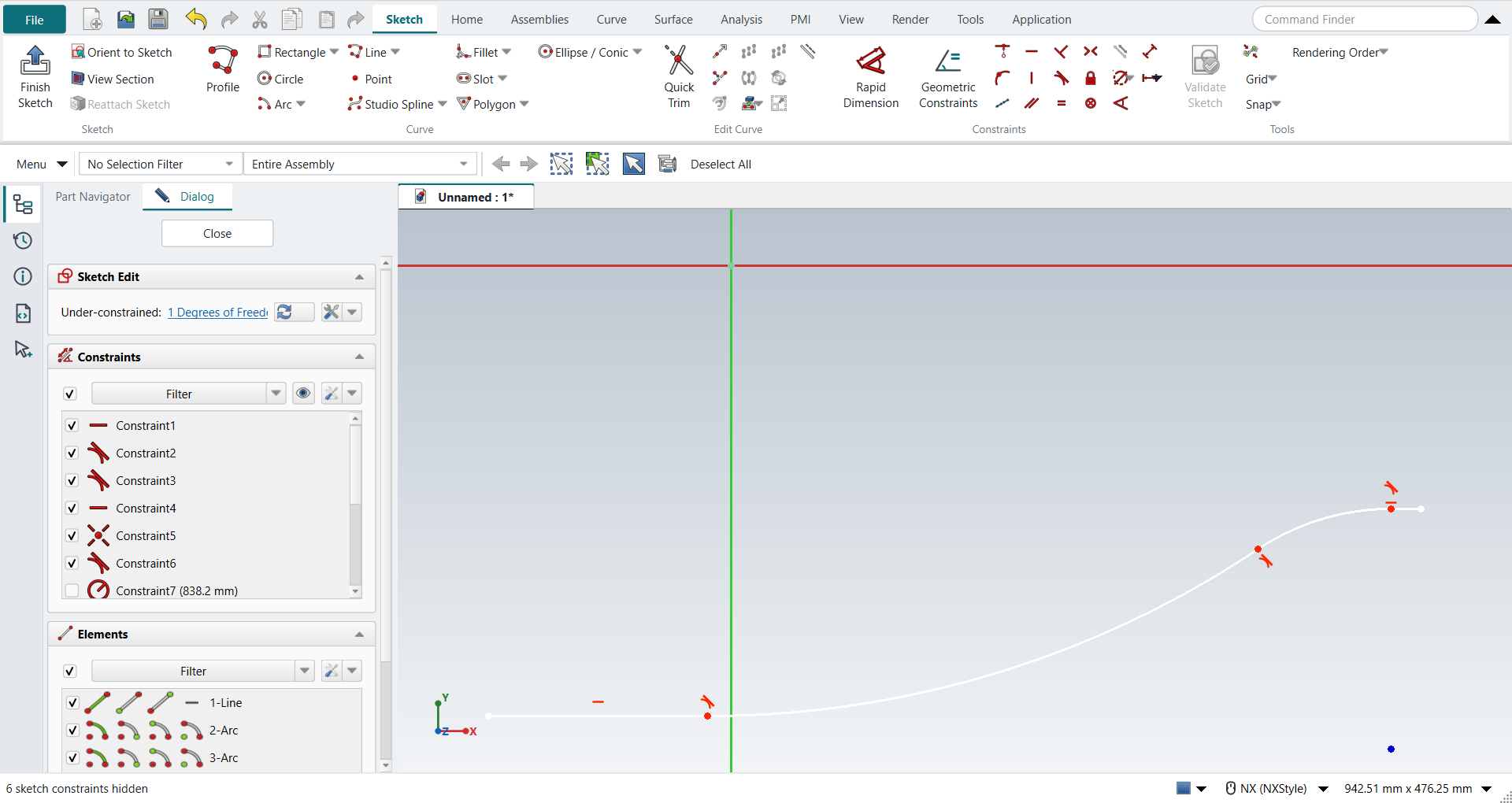

The curve after Hide: the dimensions are gone

4. Move Curve: the wall, the edge and the flange

Select the four curves and click Move Curve. Set Copies to 1 so that the curves are copied, not moved (NX: Copy Original). Click a base point, then type the move in the fields beside the pointer: length 12.7 mm, angle 90°. Join the two ends with lines (L). That closes the casing wall.

Copy the four curves again, 38.1 mm at -90° (1.5 in down), and join their ends to the inner curve. That is the edge, which the next chapter extrudes.

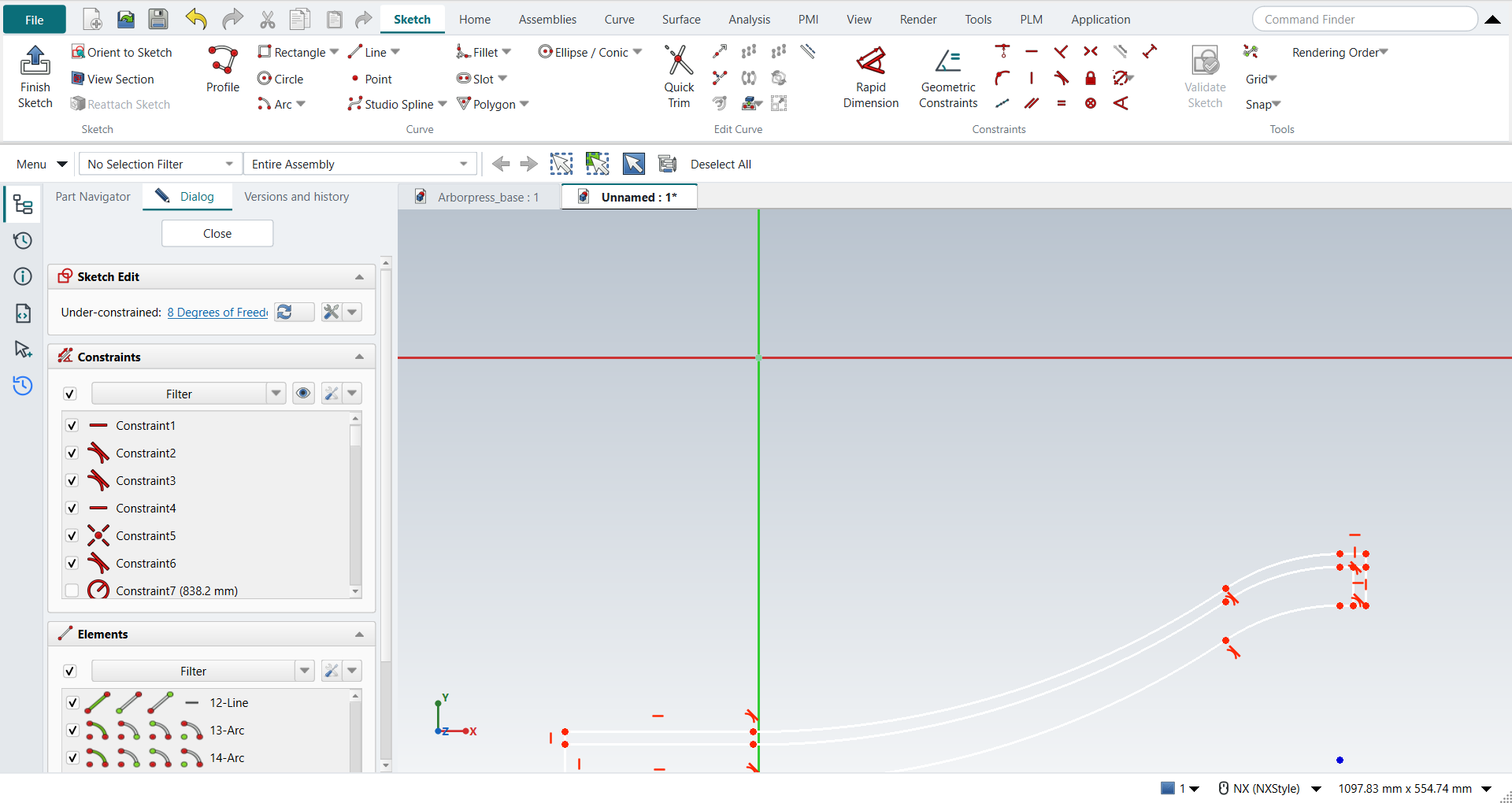

At the small end, copy the edge’s end line 12.7 mm at 180° (0.5 in along -XC), and join the two lines at the top and the bottom. That is the flange. The sketch now has 19 curves.

Ctrl+Q, and save with Ctrl+S.
