Tutorial V: Release and engineering change

Source	Engineering change management as the PLM books describe it (Stark, Grieves, Saaksvuori and Immonen): a release with part number and revision, an engineering change, a new revision, the old one obsolete; the package NX publishes with File › Export › Publish Technical Data Package
You learn	PLM › Versions and History, Create Version, Release, Publish Release Package, Compare, Releases, Mark obsolete
Needs	Tutorial T first (the replay runs it), and `git` on the PATH for Strata

Step by step

1. Version control

Save the bush into a project folder. PLM › Versions and History, Turn on version control: from now on every save is recorded.

2. Release revision A

PLM › Create Version: V1. Right-click V1 in the history, Release: part number BUSH-100; Strata proposes revision A.

3. The release package of revision A

PLM › Publish Release Package: the dialog picks BUSH-100 rev A. The package holds the STEP model, the FreeCAD document, the drawing as PDF, the PMI and inspection plan, the fit’s stack-up and the mass properties, with a manifest of SHA-256 checksums (Release packages).

4. ECO-001

The shaft runs warmer than planned: the bore changes from H7 to F7. Change the bore PMI’s Fit to F7 and save. The PMI shows Ø16.000 F7 (+0.034/+0.016) Ⓔ, and the fit’s stack-up from tutorial T follows: clearance 0.022 to 0.051.

5. Compare and release revision B

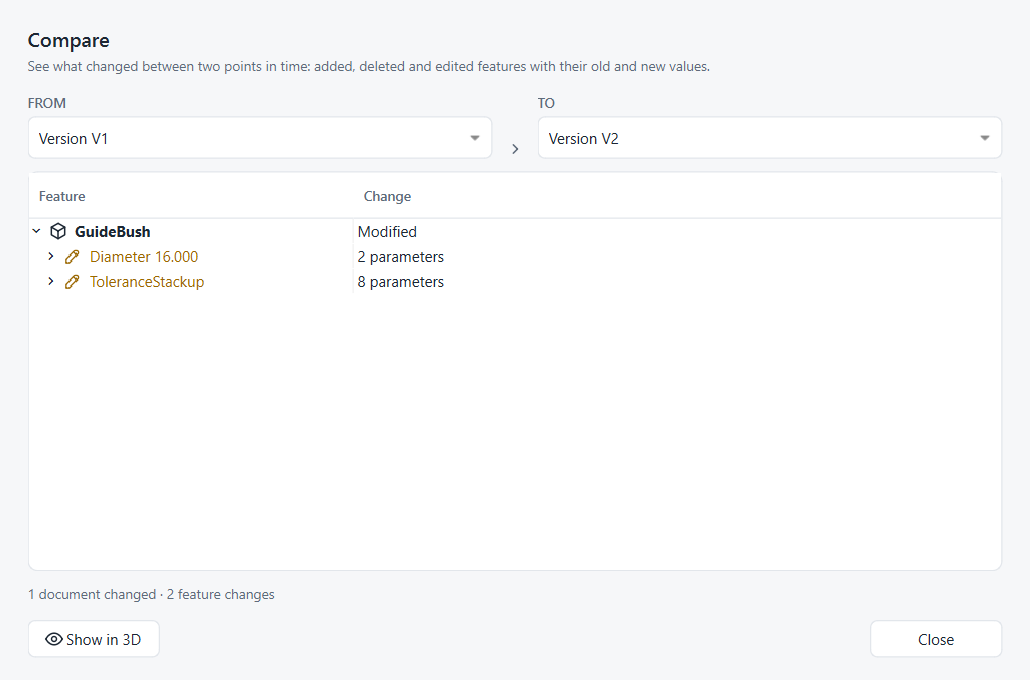

Create Version V2, then PLM › Compare V1 with V2: Strata lists the changed PMI property. Release V2: the same part number, revision B. PLM › Releases, select revision A, Mark obsolete.

6. Both packages

Publish revision B, and revision A again. Revision A’s package, made after the change, still documents Ø16 H7 (16.000 to 16.018): a package is made from what was released, never from the working copy. Revision B’s documents F7 (16.016 to 16.034).

Tutorial BC hands revision B to manufacturing, in Carbon.

The replay

#	In the book (NX)	In FreeCAD NX-Style	Result	Notes
V1	The guide bush of tutorial T, saved in a project folder; Versions and history	the Versions and history tab of the navigators	same	Strata’s panel among the navigators (Teamcenter’s place in NX); the ribbon button shows or hides it
V2	Turn on version control for the project folder	'Turn on version control', folder and name, 'Turn on'	same	project V_project: every save is now recorded
V3	Create Version V1	ribbon 'PLM › Versions > Create Version', name and description, 'Create version'	same	versions ['V1']
V4	Release V1 as part number BUSH-100: revision A	the version’s MB3 menu > Release; part number typed; 'Release'	differs	releases [('BUSH-100', 'A', 'Released')]; the menu item’s action is called (the replay does not open the context menu)
V5	Publish the release package of rev A	ribbon 'PMI › Exchange > Publish Release Package', release 'BUSH-100 rev A (Released)', folder typed, MB2 = OK	differs	9 files (analysis/ToleranceStackup.csv, analysis/ToleranceStackup.txt, analysis/mass_properties.csv, drawings/Page.pdf, model/BUSH-100_A.FCStd, model/BUSH-100_A.step, pmi/checks.txt, pmi/inspection_plan.csv, pmi/pmi.json); STEP schema AP242_MANAGED_MODEL_BASED_3D_ENGINEERING_MIM_LF with PMI: schema AP242_MANAGED_MODEL_BASED_3D_ENGINEERING_MIM_LF; datums A, B (2 datum systems); sizes: 2 diameter, 1 thickness; locations: 1; with ± tolerances: 3; fits: H7, k6; geometric tolerances: 1 coaxiality, 1 perpendicularity; standard ISO GPS (ISO 8015); checksums verified OK. NX: File > Export > Publish Technical Data Package
V6	ECO-001: the bore Ø16 H7 becomes F7 (the shaft runs warmer); save	the PMI’s Fit property; Ctrl+S	differs	Ø16.000 F7 (+0.034/+0.016) Ⓔ; the fit’s stack-up follows: clearance 0.022 to 0.051; the drawing’s inherited bore dimension follows too (['⌀%.3w F7 Ⓔ'], one, where it was); the save is recorded in the history
V7	Create Version V2	ribbon 'PLM › Versions > Create Version'	same	versions ['V2', 'V1']
V8	Compare V1 with V2	ribbon 'PLM › Versions > Compare', From V1, To V2	same	1 document changed · 7 feature changes: GuideBush \| Dimension004: Added · DrawViewDimension \| Dimension001: Deleted · DrawViewDimension \| Diameter 16.000: 2 parameters \| Callout: Ø16.000 H7 (+0.018/0) Ⓔ → Ø16.000 F7 (+0.034/+0.016) Ⓔ \| Fit: H7 → F7 \| ToleranceStackup: 8 parameters \| AdjustedMax: 0.0363213 → 0.0523213 \| AdjustedMin: 0.00467873 → 0.0206787 \| Nominal: 0.0205 → 0.0365 \| RSSMax: 0.0310475 → 0.0470475
V9	Release V2: the same part number, the next revision B	MB3 > Release, 'Release'	differs	releases [('BUSH-100', 'A', 'Released'), ('BUSH-100', 'B', 'Released')]
V10	Releases: rev A marked obsolete	ribbon 'PLM › Release > Releases', row A, 'Mark obsolete', Yes	same	releases [('BUSH-100', 'A', 'Obsolete'), ('BUSH-100', 'B', 'Released')]
V11	Publish the release package of rev B	ribbon 'PMI › Exchange > Publish Release Package', release 'BUSH-100 rev B (Released)', folder typed, MB2 = OK	differs	9 files (analysis/ToleranceStackup.csv, analysis/ToleranceStackup.txt, analysis/mass_properties.csv, drawings/Page.pdf, model/BUSH-100_B.FCStd, model/BUSH-100_B.step, pmi/checks.txt, pmi/inspection_plan.csv, pmi/pmi.json); STEP schema AP242_MANAGED_MODEL_BASED_3D_ENGINEERING_MIM_LF with PMI: schema AP242_MANAGED_MODEL_BASED_3D_ENGINEERING_MIM_LF; datums A, B (2 datum systems); sizes: 2 diameter, 1 thickness; locations: 1; with ± tolerances: 3; fits: F7, k6; geometric tolerances: 1 coaxiality, 1 perpendicularity; standard ISO GPS (ISO 8015); checksums verified OK. NX: File > Export > Publish Technical Data Package
V12	Publish rev A again (now obsolete), after the change	ribbon 'PMI › Exchange > Publish Release Package', release 'BUSH-100 rev A (Obsolete)', folder typed, MB2 = OK	differs	9 files (analysis/ToleranceStackup.csv, analysis/ToleranceStackup.txt, analysis/mass_properties.csv, drawings/Page.pdf, model/BUSH-100_A.FCStd, model/BUSH-100_A.step, pmi/checks.txt, pmi/inspection_plan.csv, pmi/pmi.json); STEP schema AP242_MANAGED_MODEL_BASED_3D_ENGINEERING_MIM_LF with PMI: schema AP242_MANAGED_MODEL_BASED_3D_ENGINEERING_MIM_LF; datums A, B (2 datum systems); sizes: 2 diameter, 1 thickness; locations: 1; with ± tolerances: 3; fits: H7, k6; geometric tolerances: 1 coaxiality, 1 perpendicularity; standard ISO GPS (ISO 8015); checksums verified OK. NX: File > Export > Publish Technical Data Package
V13	Each package documents its own revision: the inspection plans of A and B	the two packages' pmi/inspection_plan.csv	same	rev A bore 16.0 to 16.018; rev B 16.016 to 16.034; rev A, published again after the change, still documents H7: a package is made from what was released, not from the working copy
