Tutorial AN: Arbor Press Plate

Source	Ming C. Leu, Wenjin Tao, Amir Ghazanfari and Krishna Kolan, NX 12 for Engineering Design (Missouri University of Science and Technology), sections 4.2.1 (Model a Block), 4.3 (Reference Features) and 4.5.1 (General Hole). The book builds the plate in three visits; here they follow one another.
You learn	Block with Origin and Edge Lengths, Fit and Trimetric, Datum Plane at an offset, Datum Axis through two points, Hole with its points sketched on a face
Sizes	the book’s, in inches, typed in millimetres. A block 65 × 85 × 20 with its origin at (0, 0, 0). A datum plane 15 above the top face. Six simple holes Ø8, 25 deep with a 118° tip, at (11.25, 10), (32.5, 23.5), (53.75, 10), (11.25, 75), (32.5, 61.5) and (53.75, 75).

The book’s figure picks the datum axis’s points without coordinates: a bottom corner and the opposite top corner of the front face. Here they are (65, 0, 0) and (0, 0, 20), so the axis is the front face’s diagonal. The plate is 20 thick, so holes 25 deep go through it.

Step by step

1. The block

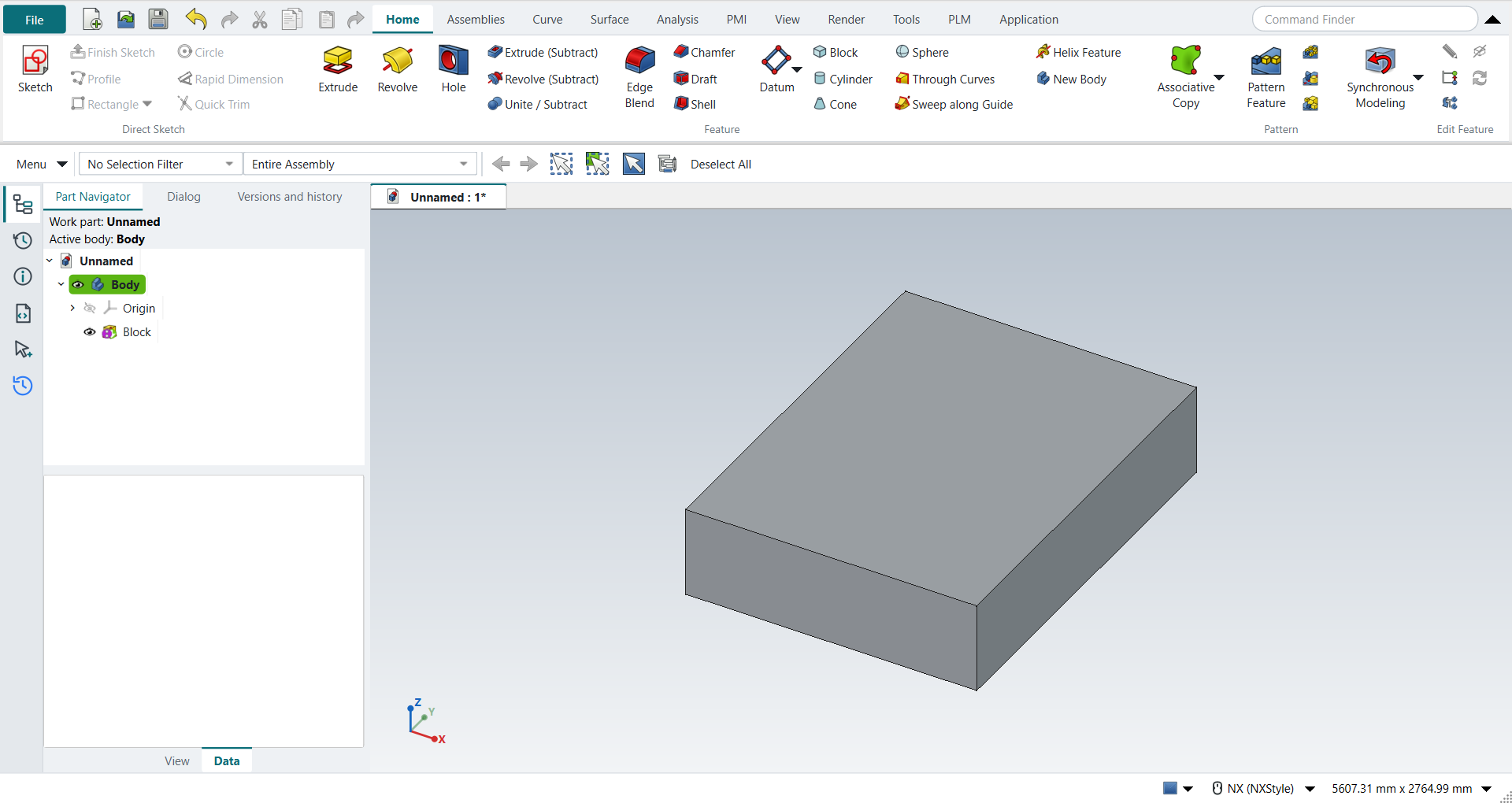

Ctrl+N, then Block (Home › Feature). In the Block dialog keep Origin and Edge Lengths, leave XC, YC and ZC at 0, and type Length 65, Width 85 and Height 20. Click OK.

Ctrl+F fits the view, and Home turns it to Trimetric (NX: MB3 > Orient View > Trimetric). Save the part as Arborpress_plate.

2. A datum plane and a datum axis

Select the block’s top face and choose Datum > Datum Plane. FreeCAD attaches the plane to the face; in the Dialog panel type 15 in the offset along Z and press MB2.

Select two corners of the block, here (65, 0, 0) and (0, 0, 20), and choose Datum > Datum Axis. FreeCAD takes the axis through the two points, as NX’s Inferred type does; press MB2.

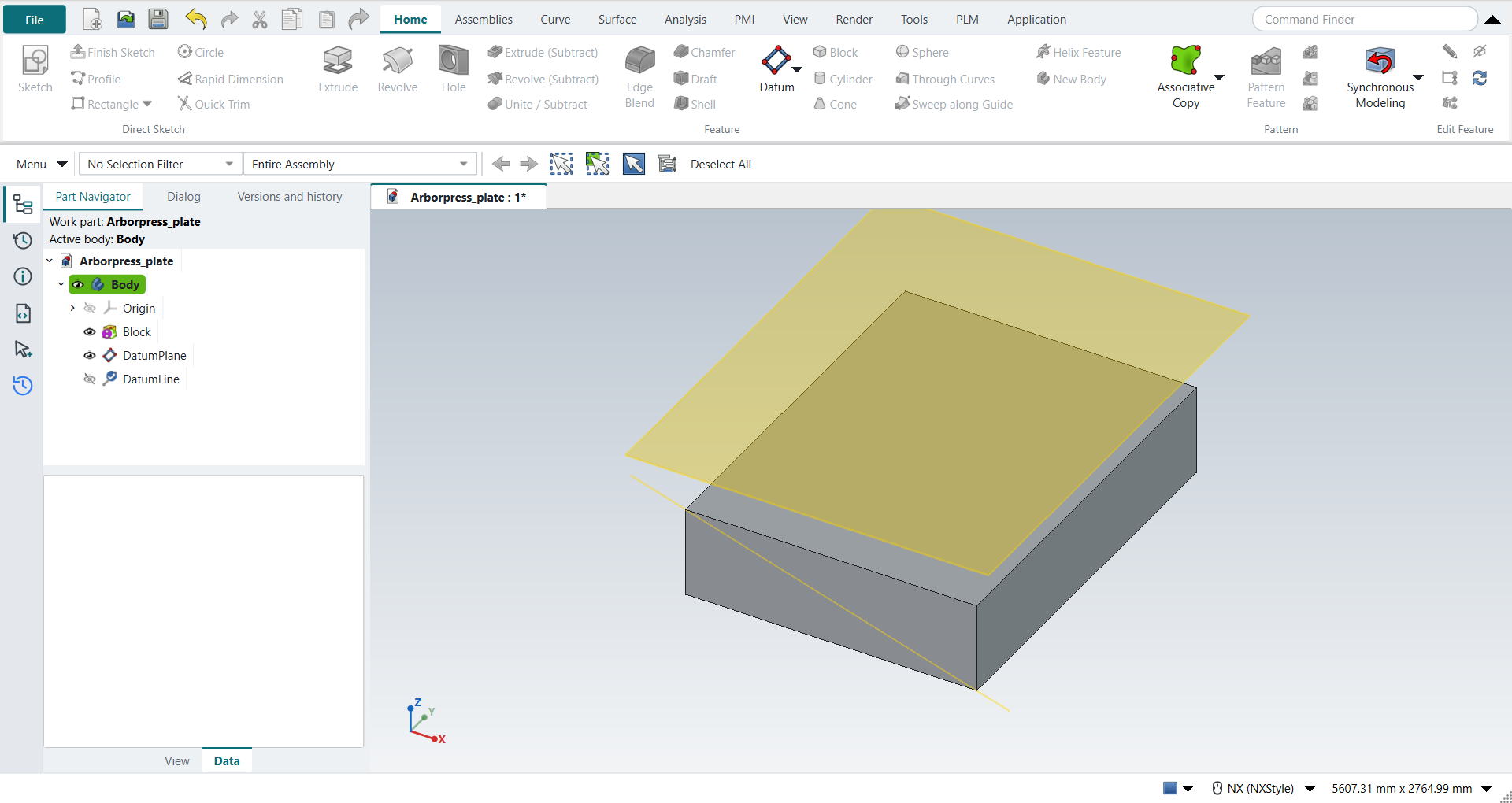

The datum plane above the top face and the datum axis along the front face’s diagonal

3. The holes

Select the top face and click Hole. NX-Style starts a sketch on the face, which is NX’s Sketch Section in the Hole dialog’s Position group. Click Point (Sketch › Curve), then for each of the six points type XC and YC in the fields beside the pointer, pressing Enter after each. Press MB2, then Ctrl+Q.

The Hole dialog opens. Keep the simple hole, and type Diameter 8, Depth 25 and the tip angle 118°. Press MB2.

Save the part.

The replay
