Tutorial AX: Impeller Upper Casing

Source	Ming C. Leu, Wenjin Tao, Amir Ghazanfari and Krishna Kolan, NX 12 for Engineering Design (Missouri University of Science and Technology), exercise 4.10.3 (Impeller Upper Casing). It starts from the lower casing of tutorial AO.
You learn	Edit Parameters of a Revolve and of an Extrude, a Datum Plane at an offset, a sketch on it, Extrude with Unite, Extrude (Subtract) of some of a sketch’s curves, Show
Sizes	the lower casing’s, in inches, typed in millimetres. The manhole is ours (see below).

The book gives the upper casing the lower casing’s dimensions and leaves the manhole to the reader: it should be big enough to see the impeller blades and to put a hand inside to clean it. Here it is a square tube 5 × 5 in with 0.5 in walls, its top 3 in above the casing (z = 18 in), over the middle of the wall’s straight part, and a 4 × 4 in opening through the wall. The tube ends in the middle of the wall’s thickness (z = 14.75 in): ending it on the wall’s inner face would leave a tangent contact that the Unite cannot make.

The replay runs tutorials AG and AO first and starts from the part AO saved.

Step by step

1. The lower casing, turned over

Open Impeller_lower_casing and save it as Impeller_upper_casing.

Select the wall’s Revolve in the Part Navigator and click Edit Parameters. Keep Start 0, type End −180, and click OK: the wall is now above the split plane. Do the same for the flange’s Revolve.

Select the edge’s Extrude, click Edit Parameters, untick Reversed in FreeCAD’s panel and click OK. The edge now runs up from the split plane, and its mirrored copy follows by itself.

2. The manhole

Select the XC-YC plane in the Part Navigator and choose Datum > Datum Plane. Type 457.2 mm (18 in) in the offset along Z and press MB2. Select the datum plane and click Sketch. Draw two squares with Rectangle (R), both centred over the middle of the wall’s straight part: 5 × 5 in and 4 × 4 in. Then Ctrl+Q.

Click Extrude, click a side of a square, choose Unite, and type 82.55 mm (3.25 in). Tick Reversed so that it runs down to the casing, then click OK: the tube.

FreeCAD hides a sketch once an Extrude uses it, and a hidden curve cannot be picked. Select the sketch in the Part Navigator and click Show (View tab). Click Extrude (Subtract), set the Curve Rule to Single Curve and pick the inner square’s four lines; QuickPick lists them where they lie on the tube. Type 127 mm (5 in) and click OK: the opening through the wall.

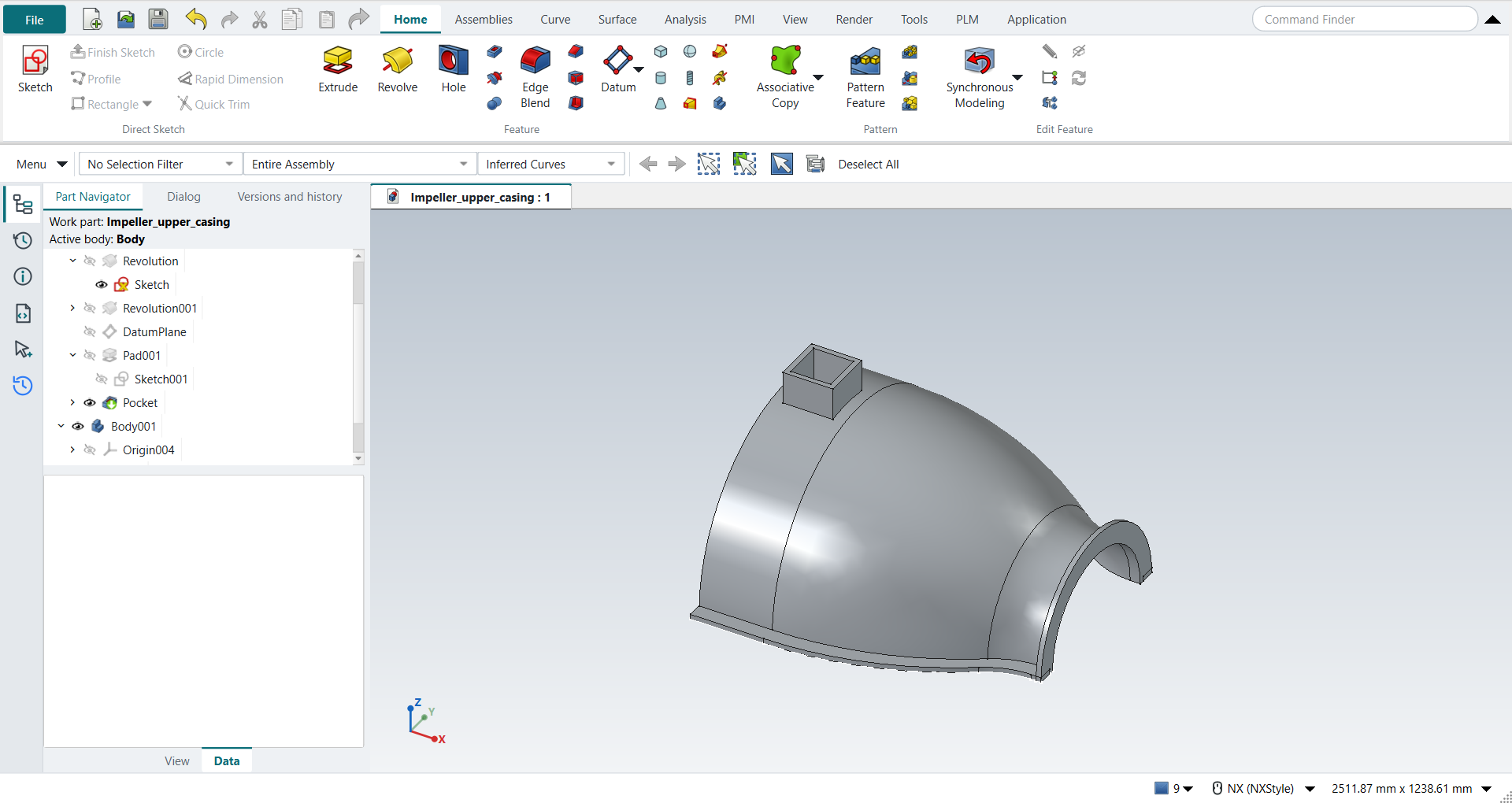

The upper casing with its square manhole

Save the part.

The replay
