Tutorial AJ: Circular Base

Source

Ming C. Leu, Wenjin Tao, Amir Ghazanfari and Krishna Kolan, NX 12 for Engineering Design (Missouri University of Science and Technology), exercise 3.6.1. The book gives only the dimensioned top view; the steps here are ours.
You learn

Extrude a disc, then sketch on its face and cut with Extrude (Boolean Subtract); Profile with tangent semicircles; locating a slot from its axis and the centre
Sizes

the book’s top view, in mm. The disc is R60. The top slot is 30 wide, and its semicircle’s centre is 31.905 in from the rim. The other three are 17 wide, 30.605 in from the rim. Only the right one is dimensioned; the figure draws the left and bottom ones the same. The book gives no thickness. 20 is used here, about a third of the press base’s 60 as the assembly picture in 6.6.1 shows it.

The slot depths are measured from the rim, along the slot’s axis, to the semicircle’s centre. That centre is 60 - 31.905 = 28.095 from the middle for the top slot and 29.395 for the others.

Step by step

1. The disc

Ctrl+N, then X with nothing selected and the XC-YC plane. O for a circle: click the origin, then the rim. Make its radius 60 (Radius / Diameter drop-down > Constrain radius). Ctrl+Q, type 20 and press MB2. The Boolean is None: a new body.

2. The four slots

Select the disc’s top face and press X. The sketch opens on the face. Draw each slot’s U with Profile (Z):

  1. start outside the disc and go down one side;

  2. press M three times for a tangent arc and click the other side, which makes the semicircle;

  3. go back up that side, which FreeCAD draws as a tangent line;

  4. go across outside the disc to the first point.

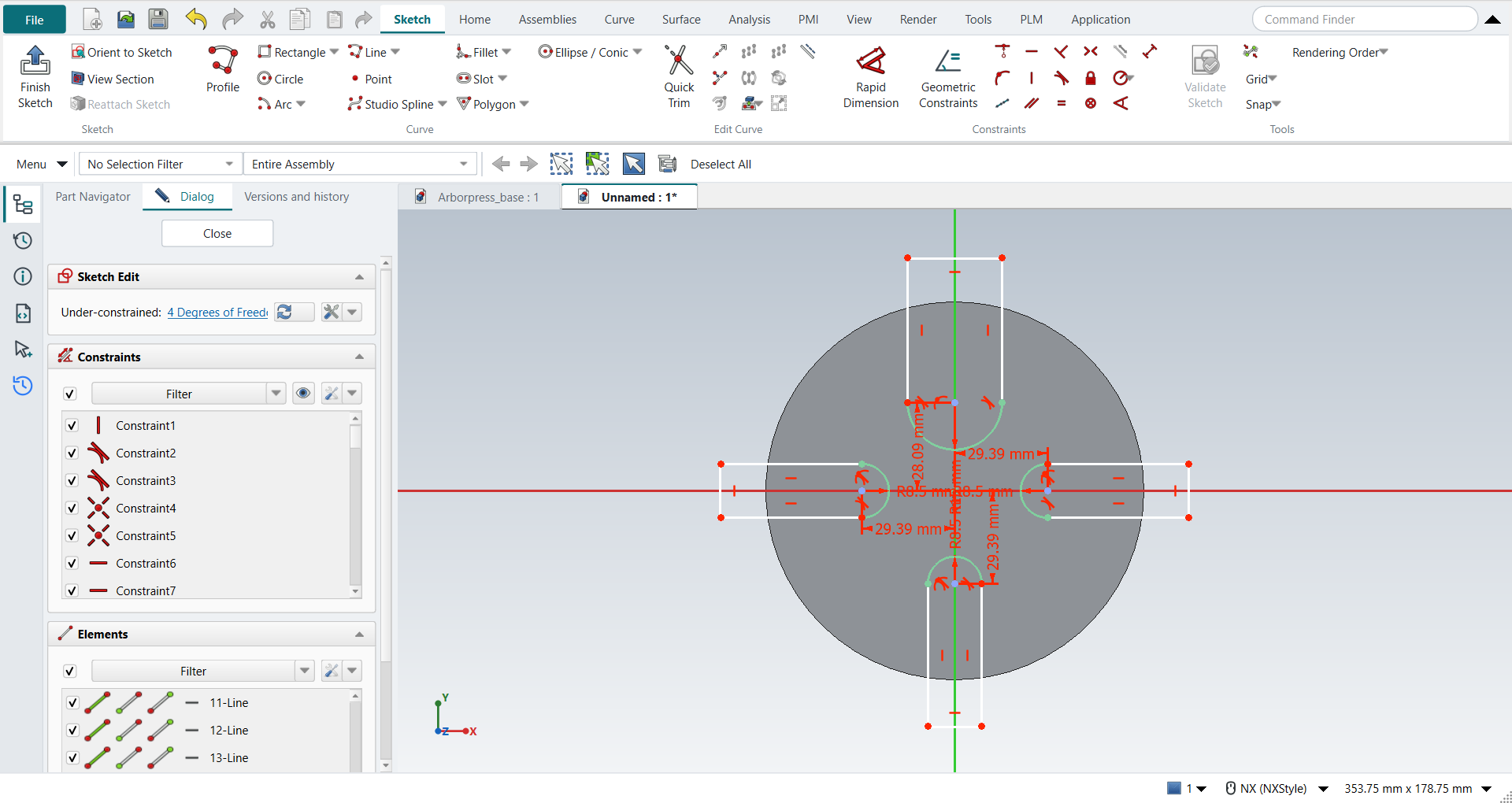

The four slot outlines on the disc’s top face

Then fix each slot:

  • the semicircle’s centre on the slot’s axis: pick the centre and the axis, then Coincident;

  • the radius: 15 for the top slot, 8.5 for the others;

  • the centre’s Distance from the middle: 28.095 for the top slot, 29.395 for the others;

  • the two sides parallel to the axis.

The outer ends can stay where they are, as long as they are outside the disc.

3. Cut them

Ctrl+Q opens the Extrude dialog with Unite inferred. Choose Subtract, type 20 and press MB2: the four slots go through the disc. Save with Ctrl+S.
